Engineered for 10-Ring Bins

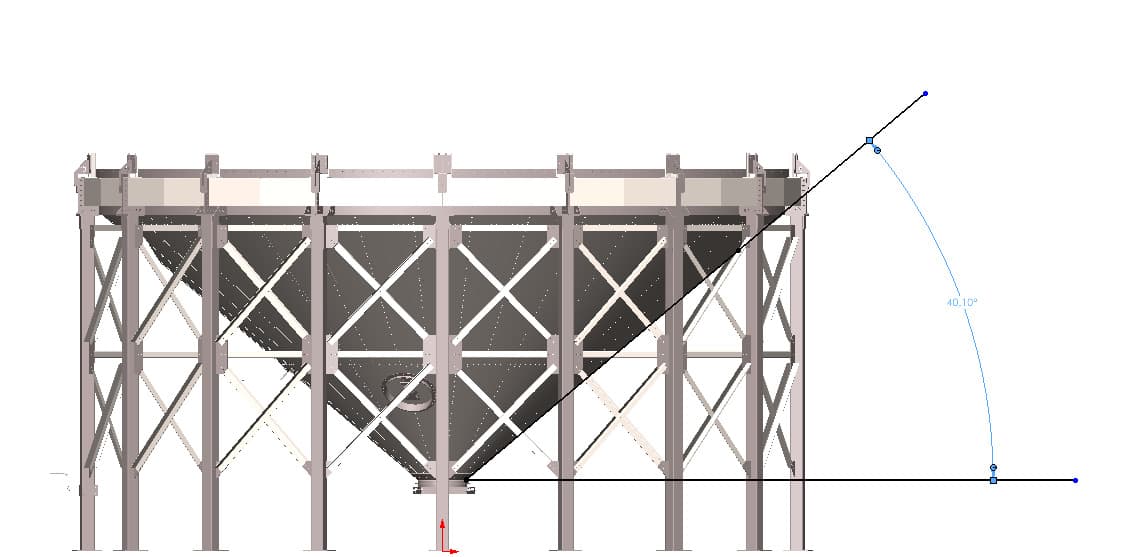

The 27HD Bolt-Together Hopper Cone
Heavy-duty, modular grain storage engineered for all North American climates.
Overview
Big Capacity. Standard Freight.
Engineered for all climates across North America. The 27HD handles up to a 10-ring wide core bin, providing a massive 18,885-bushel capacity in our 27-10 model. We deliver straightforward product sales backed by responsive service and a clean industrial identity you can depend on.
- 18,885 bu
- Capacity, 27-10 model
- 40°
- Cone slope
- 10 rings
- Max core bin width
- 26.13″
- Clearance
Specifications
Full Specifications
| Model | 27HD |
|---|---|
| Available Configurations | 27-09 and 27-10 |
| Capacity (27-10) | 18,885 bushels |
| Cone Slope | 40° |
| Bin Compatibility | Up to a 10-ring wide core bin (almost 37 feet of bin) |
| Aeration | V-Style Fan |
| Clearance | 26.13″ |
| Construction | Bolt-together modular steel panels |
| Shipping | Standard freight. No pilot vehicles or wide-load permits required. |
Need a spec you don't see here? Call 204-384-6197 and we'll get you the answer.
Modular by Design
Ships Flat. Bolts Together On-Site.
Every 27HD ships as flat-packed panels and bolts together on-site. Standard freight in, straightforward assembly out, and a cone engineered to shoulder almost 37 feet of bin overhead.
Additional sizes are currently in development. Contact us to be notified when they launch.
Next Steps
Ready to Talk Specs?
Call Jotham Wiebe at 204-384-6197 or email sales@ptsteelworks.com for pricing and delivery timelines.
